TLX COMPONENT LIBRARY

TLX US Naval Research Laboratory logo


Developed in collaboration with the US Naval Research Laboratory, the TLX component library comprises passive components designed to operate from 700 nm to 1625 nm (from the I-band to the L-band) on AIM Photonics' Silicon Nitride Passive PIC technology platform.

  • Low-loss waveguides, typically
    < 0.2 dB/cm (1000 nm to 1625 nm)
    < 1.0 dB/cm (700 nm to 1000 nm)
  • Low-fluorescence: typical inelastic waveguide emission limited by Raman scattering from core.
  • Designed for TE00 and TM00 modes
  • Sensing trench with fully exposed waveguide
  • Measurement-verified components in upcoming release.

Other helpful information to know

  • The current PDK version that should be used for the silicon nitride MPW runs is 0.5.

  • The community of organizations who use our PDK is growing. To support this design work and provide information about common questions, we’ve set up help desk functions. See details about getting an account.

  • See also information about the PDK License Agreement.

Components Qty of Variants Description
Waveguide 4 Designed for all wavelengths in range (700 nm — 1625 nm)
Edge Couplers 4 Typical loss < 3 dB/coupler
Matched to 0.12 NA fiber
Directional couplers 16 50/50 and 90/10 splitting
Y-branch splitter 4 Broadband and polarization insensitive

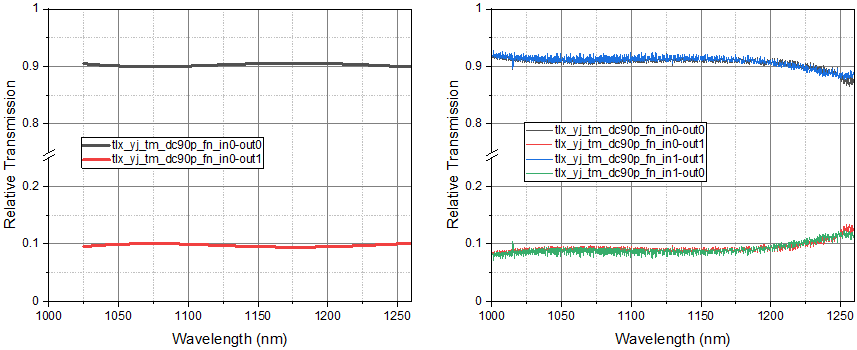

Calculated vs measured example component (tlx_yj_tm_dc90p_fn)
